LLM Prompts & Langfuse Integration

Overview & Architecture

We maintain a strict separation between application code, prompt definitions, and observability:

Core Principles

1. Git is the Single Source of Truth: All prompts live in the esp-prompts repository.
2. Dynamic Ingestion via Langfuse: At runtime, services query Langfuse (https://esplf.esprofiler.com) for the prompt version tagged with their target environment label (production by default, or staging in test environments).
3. Resilient Local Fallbacks: Every prompt declared in code includes a local classpath fallback file (e.g. src/main/resources/intelligence/prompts/*.st) to ensure services start reliably even if Langfuse is unreachable.
4. Testing on Staging Before Production: Changes must always be verified on Staging before being promoted to production.
5. Benchmarking & Evaluation (Future / TBD): Automated evaluation pipelines and benchmark datasets by the Data/AI team are planned for future releases. Developers can log data-tasks to contribute to this future benchmark suite.

Adding New Prompts

Follow these steps when creating a brand new prompt that has never existed in the platform or Langfuse.

Workflow Summary

Step 1: Backend Implementation (platform-api / api-cps)

1. Add the Static Fallback Prompt (.st file)

Static fallback prompt templates live under src/main/resources/ in your backend application:

• src/main/resources/intelligence/prompts/ — Standard copilot, insight, and platform agents (e.g., insights/signal-evaluation.st, agent-copilot.st, agent-notebook.st).
• src/main/resources/agent-tasks/ — Workflow-specific agents (e.g., agent-tasks/general/, agent-tasks/product-comparison/).

Example: src/main/resources/intelligence/prompts/insights/signal-evaluation.st

You are an expert Cybersecurity Intelligence Analyst. Your task is to map a new observation (Finding) to the single best matching high-level trend (Signal) from a provided list of candidate Signals.

Strict Rule: A Finding can only belong to AT MOST ONE Signal.

Here is the Finding to evaluate:
Title: <finding.title>
Description: <finding.description>

Here are the candidate Signals:
<candidateSignals:{s |
- ID: <s.id>
  Title: <s.title>
  Description: <s.description>
  Type: <s.type>
}>

The variables injected are injected into the prompt when calling the agent service in Java.

Understanding the Prompt Resolution & Cache Hierarchy

When langfusePromptService.getPrompt(PROMPT_NAME, fallbackPrompt) is called at runtime, it resolves the prompt through a 4-tier hierarchy:

1. RAM Cache (memoryCache Map): Checked first (0ms latency, zero disk I/O).
2. Remote Langfuse Ingestion: If online and configured (ESP_LLM_OBSERVATION_OTLP_ENDPOINT), fetches the version tagged with ESP_LANGFUSE_PROMPTS_LABEL (production or staging).
3. Disk Cache (resources/prompts/<prompt>.st & .version): Persisted on the container filesystem (configured via esp.langfuse.prompts.cache-dir, defaults to resources/prompts/) so prompts survive network blips.
4. Local Classpath Fallback: If Langfuse is unreachable, disabled, or if the prompt hasn't been created in Langfuse yet, it falls back to your local .st resource in src/main/resources/.

2. Wire LangfusePromptService and ChatClient Advisor

In your Spring configuration class (e.g., SignalGenerationAgentConfig.java in esp-platform project), declare a ChatClient bean wrapped in ReloadableChatClient. This binds your feature to Langfuse, attaches OpenTelemetry tracing, and allows the prompt to be hot-reloaded dynamically at runtime:

@Configuration
public class SignalGenerationAgentConfig {

  private static final String SIGNAL_EVALUATION_PROMPT_NAME = "signal-evaluation";

  @Bean
  public ChatClient signalEvaluationAgent(
      @Value("classpath:intelligence/prompts/insights/signal-evaluation.st") Resource systemPrompt,
      GoogleGenAiChatModel chatModel,
      ObservedChatClientBuilder observedChatClientBuilder,
      LangfusePromptService langfusePromptService
  ) {
    // ReloadableChatClient enables zero-downtime hot-swapping of prompt updates
    return new ReloadableChatClient(SIGNAL_EVALUATION_PROMPT_NAME, () ->
        observedChatClientBuilder.from(chatModel, "signal-evaluation")
            // Dynamically loads from Langfuse with fallback to local classpath
            .defaultSystem(
                langfusePromptService.getPrompt(SIGNAL_EVALUATION_PROMPT_NAME, systemPrompt))
            .defaultOptions(GoogleGenAiChatOptions.builder()
                .model(IntelligenceLevel.MEDIUM.model)
                .includeThoughts(false))
            .defaultAdvisors(
                // Links OTel spans and Langfuse generation traces to this prompt & version
                new LangfusePromptObservationAdvisor(SIGNAL_EVALUATION_PROMPT_NAME,
                    langfusePromptService)
            )
            .build()
    );
  }
}

3. Calling the Agent Service in Java

Inject your configured ChatClient bean into your service (e.g., SignalGenerationService.java), passing parameters into the prompt using .system(s -> s.param(...)) or .system(s -> s.params(map)):

package com.esprofiler.platform.insight.service;

import com.esprofiler.platform.insight.dto.SignalGenerationResponses.SignalMatchResponse;
import com.esprofiler.platform.insight.entity.FindingEntity;
import com.esprofiler.platform.insight.entity.SignalEntity;
import java.util.List;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Service;

@Slf4j
@Service
@RequiredArgsConstructor
public class SignalGenerationService {

  @Qualifier("signalEvaluationAgent")
  private final ChatClient signalEvaluationAgent;

  public SignalMatchResponse evaluateFinding(FindingEntity finding, List<SignalEntity> candidates) {
    return signalEvaluationAgent.prompt()
        // Passes 'finding' object and 'candidateSignals' collection into the template
        .system(s -> s
            .param("finding", finding)
            .param("candidateSignals", candidates))
        .user("Please evaluate this finding against the candidate signals.")
        .call()
        .entity(SignalMatchResponse.class);
  }
}

4. Open Backend Pull Request

Push your branch and open a PR in esp-platform or esp-cps. Follow standard code review guidelines and obtain approval.

Step 2: Create Prompt in esp-prompts Repository

Once your backend PR is reviewed and approved, create the prompt definition in esp-prompts.

1. Add the Prompt File

Place your prompt file in the corresponding folder:

• platform/espi/ — Copilot conversation agents and skills.
• platform/insights/ — Automated findings, signals, and synthesis agents.
• cps/ — Central Provider Service categorization and mapping engines.

Naming Convention: Use short, lowercase, hyphenated names matching your PROMPT_NAME constant (e.g. platform/insights/signals/my-feature.md or platform/espi/skills/my-feature-skill/SKILL.md).

2. Open PR in esp-prompts

Open a PR in esp-prompts referencing your backend PR:

Relates to ES-Profiler/platform-apim#1234
Adds the new prompt definition for the MyFeature assistant.

3. Merge to main (Automatic Staging Sync)

When merged into main in esp-prompts, GitHub Actions automatically triggers .github/workflows/sync-prompts-staging.yml:

• It uploads the new prompt to Langfuse.
• Labels the version as staging.
• Applies routing tags (e.g. service-platform, domain-insights).

Step 3: Staging Verification & Testing

Verify that your new prompt works end-to-end on Staging:

1. Deploy your backend branch/build to Staging with the staging label enabled:

   ESP_LANGFUSE_PROMPTS_LABEL=staging


2. Trigger the feature in the staging UI or via API endpoint.
3. Open the Langfuse Console:
   • Under Prompts, verify that your prompt appears and the staging label is assigned.
   • Under Tracing, inspect the execution trace and confirm that the generation span is linked to your prompt name and version.

Step 4: Open a Data-Task for Benchmarking (Optional / Future TBD)

If you wish to log a task for future benchmarking:

1. In the repository, go to Issues > New Issue.

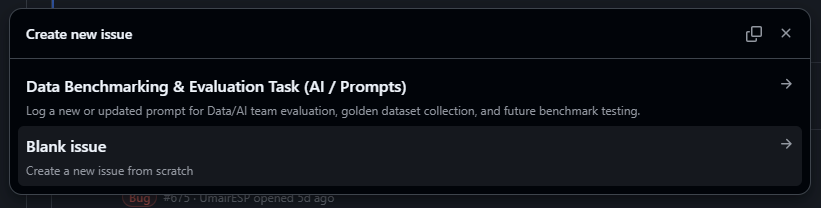

2. Select the Data Benchmarking & Evaluation Task (AI / Prompts) template:

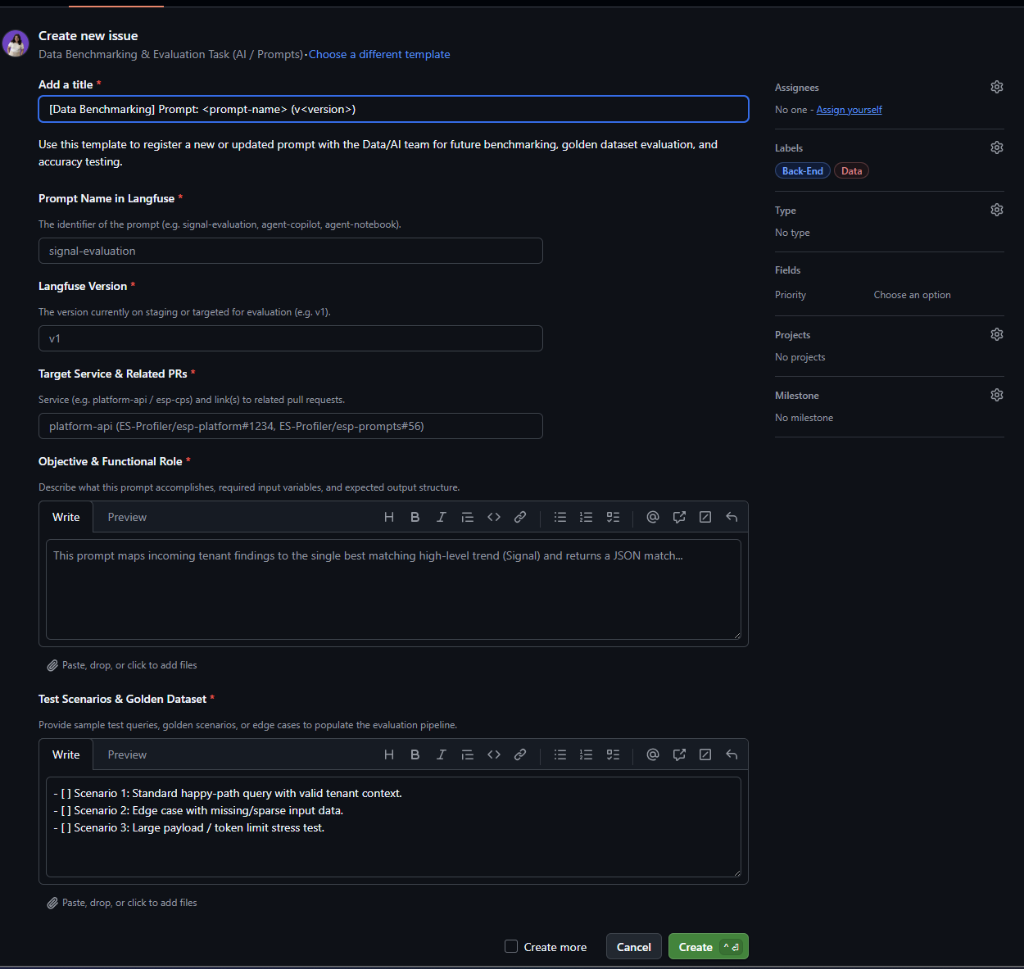

3. Fill out the pre-populated form fields:
   • Prompt Name in Langfuse: e.g. signal-evaluation
   • Langfuse Version: e.g. v1 (currently tagged staging)
   • Target Service & Related PRs: e.g. platform-api (ES-Profiler/platform-api#1234, ES-Profiler/esp-prompts#56)
   • Objective & Functional Role: Purpose, input context parameters, and expected JSON output structure.
   • Test Scenarios & Golden Dataset: Test cases or edge cases to populate the evaluation suite.
   • Langfuse Reference URLs: Direct links to the prompt in Langfuse and sample staging trace.

4. The template automatically attaches the Data and Back-End labels. Click Submit new issue.

Step 5: Promote Prompt to Production & Release Backend

Once staging testing is complete:

1. Promote Prompt in esp-prompts:
   • Go to Actions > Promote Prompts to Production.
   • Enter your prompt name in the prompts input (e.g. my-feature).
   • Run workflow. Review the dry-run plan, and have a required reviewer approve the production environment gate.
2. Release Backend Code:
   • Merge and release the platform-api / api-cps PR.
   • Production containers boot up, query Langfuse for label=production, and ingest the newly promoted prompt.

Modifying Existing Prompts

When modifying a prompt that already exists in production, determine whether the change is prompt-content only or requires backend code changes.

Workflow Summary

Step 1: Determine Modification Type (Content-Only vs Code Changes)

Scenario A: Content-Only Modification (Zero-Downtime, No Backend Redeploy)

If you are refining prompt instructions, improving persona prompts, tuning few-shot examples, or reducing hallucinations:

1. You do not need to touch platform-api or api-cps code immediately.
2. Go directly to esp-prompts and edit the markdown prompt file.
3. Open a PR in esp-prompts.

Scenario B: Modification with Backend Code Changes

If your prompt change involves adding/removing StringTemplate variables (e.g. <newVariable>), altering input/output JSON DTOs, or changing tool calls:

1. Update the fallback .st file in platform-api or api-cps and modify the corresponding Java classes.
2. Open a PR in platform-api / api-cps and obtain review approval.
3. Update the prompt file in esp-prompts to match the new variable schema and open a matching PR in esp-prompts.

Step 2: Merge to main in esp-prompts (Staging Sync)

When your esp-prompts PR merges to main, the sync-prompts-staging.yml workflow triggers automatically:

• Langfuse creates a new version (e.g. v3) with your updated prompt.
• The staging label moves to this new version.
• The production label remains untouched on the existing live version (e.g. v2).

Before Sync:   staging -> v2 (live)      production -> v2 (live)
After Sync:    staging -> v3 (updated)   production -> v2 (live)

Step 3: Verify on Staging

1. On the Staging environment (ESP_LANGFUSE_PROMPTS_LABEL=staging), execute the modified workflow.
2. Check the Langfuse Tracing dashboard to verify:
   • The trace links to the new staging version number (e.g. v3).
   • The LLM response meets expectations and adheres to formatting.

Step 4: Promote Prompt to Production

1. Go to Actions in esp-prompts > Promote Prompts to Production.
2. Enter the specific prompt name in the prompts input (e.g. my-feature) to promote only the targeted prompt.
3. Click Run workflow:
   • The plan job prints a dry-run diff of the versions that will move.
   • The workflow pauses at the production environment review gate.
   • Once approved, the job copies the staging version and labels it production.

After Promotion:   staging -> v3             production -> v4 (copy of v3)

Step 5: Ingest Prompt Updates (Automatic vs Instant Refresh)

After promoting a prompt in Langfuse, backend services pick up the change without restarting:

1. Automatic Quartz Refresh: The backend background job runs every 20 minutes and automatically fetches updated prompt versions.
2. Instant Manual Trigger: If you need the change to take effect immediately without waiting for the 20-minute timer, trigger the prompt refresh Quartz job via the API endpoint:

curl -X PATCH "https://platform.esprofiler.com/api/v1/schedules/run" \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer <API_OR_SSO_TOKEN>" \
  -d '{
    "jobName": "langfusePromptRefreshJob",
    "groupName": "DEFAULT"
  }'

Quartz Scheduled Ingestion & Manual Refresh API

Quartz Background Job Configuration

Backend services run a background Quartz job dedicated to refreshing dynamic prompts:

Triggering Manual Prompt Refresh via API

You can trigger langfusePromptRefreshJob at any time using the Schedule Management API:

• Endpoint: PATCH /api/v1/schedules/run
• Controller: ScheduleController.admScheduleRunAction
• Swagger UI: Accessible at /api/v1/docs/ui under tag Z1 - Schedule Management (Z2.02 -- admScheduleRunAction)
• Security: Requires ESP-SSO authentication or X-API-KEY.

Request Example (JSON)

PATCH /api/v1/schedules/run HTTP/1.1
Host: platform.esprofiler.com
Content-Type: application/json
Authorization: Bearer <AUTH_TOKEN>

{
  "jobName": "langfusePromptRefreshJob",
  "groupName": "DEFAULT"
}

Success Response

{
  "success": true,
  "message": "Task run request processed!"
}

Technical Reference & Best Practices

Environment Configuration & Target Labels

Backend services configure which prompt versions to fetch via the ESP_LANGFUSE_PROMPTS_LABEL environment variable (mapped to esp.langfuse.prompts.label):

# Example: Switch local or test environment to read staging prompts
ESP_LANGFUSE_PROMPTS_LABEL=staging

Disabling Langfuse Prompt Sync During Local Testing

When testing local prompt changes or debugging offline, you can completely disable remote Langfuse prompt synchronization:

# In application-local.properties or your IDE Environment Variables
ESP_LANGFUSE_PROMPTS_ENABLED=false
# or in application.yml / properties:
esp.langfuse.prompts.enabled=false

What happens when prompt sync is disabled?

1. Zero Remote Calls: LangfusePromptService completely skips remote HTTP requests to Langfuse.
2. Direct Classpath Fallback: Services immediately use your local .st template files from src/main/resources/intelligence/prompts/ on every invocation.
3. Bypasses Cache: Disk cache reads/writes and Quartz periodic refresh sweeps are bypassed.
4. Instant Iteration: You can modify your local .st file and test changes immediately without any remote sync or cache invalidation.

Langfuse Labels & Tags Reference

1. Version Labels (Prompt Routing)

2. Metadata Tags (Filtering & Categorization)

Prompts in Langfuse are automatically tagged during CI sync to allow easy filtering:

• Service Tags:
  • service-platform — Prompts consumed by platform-api.
  • service-cps — Prompts consumed by api-cps.
• Domain / Subsystem Tags:
  • domain-insights — Finding and Signal generation, emergence, and evaluation agents.
  • domain-copilot — Interactive chat assistants, skills, and conversation namers.
  • domain-tasks — Deep research, report generation, and background analyst workflows.
  • domain-changelog — Changelog and revision comparison agents.

Environment Variables Summary

Caching Architecture in Spring Boot (LangfusePromptService)

To eliminate latency and avoid external API limits, LangfusePromptService implements a resilient multi-tier cache:

1. RAM Cache (ConcurrentHashMap): Instant prompt lookup during request processing.
2. Disk Cache (resources/prompts/<prompt>.st and <prompt>.version): Persisted locally across container restarts.
3. Startup Ingestion: During ApplicationReadyEvent, the service performs a remote ingestion sweep of all registered ReloadableChatClient beans.
4. Periodic Refresh: Scheduled background Quartz job (langfusePromptRefreshJob) periodically sweeps and reloads prompt updates from Langfuse every 20 minutes.

Troubleshooting Common Issues

• Prompt returns fallback content on startup:
  • Check that ESP_LLM_OBSERVATION_OTLP_ENDPOINT is configured correctly (e.g. https://esplf.esprofiler.com/api/public/otel/v1/traces).
  • Verify that ESP_LANGFUSE_PROMPTS_LABEL matches the label present in Langfuse (staging or production).
  • Check that the prompt name passed in Java matches the prompt name in Langfuse exactly.
• HTTP 403 / Cloudflare WAF block during sync:
  • Some prompts contain HTML/JavaScript snippets. Cloudflare WAF rules may block POST requests containing script tags.
  • Ensure the Cloudflare WAF skip rule is configured for /api/public/ or that LANGFUSE_EXTRA_HEADERS contains the appropriate bypass secret.
• Span not linked in Langfuse Traces:
  • Ensure new LangfusePromptObservationAdvisor(PROMPT_NAME, langfusePromptService) is registered in defaultAdvisors on the ChatClient.
